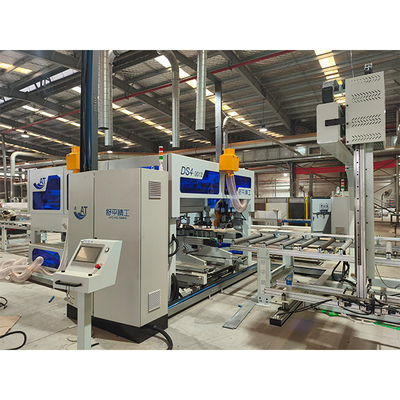

Through-Type Door CNC Cutting Machine 1500-3000mm Length 30s/Door

Brand Name:	Shuping
Model Number:	DS4
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10pcs/40 work days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Packaging Details:

Bubble wrap packaging

Supply Ability:

10pcs/40 work days

Highlight:

Through-Type Door CNC Cutting Machine

Door CNC Machine 1500-3000mm

CNC Cutting Machine 30s/Door

Product Description

High-Performance Through-Type Door Four-Side Cutting Machine

Product Overview

The Through-Type Door Four-Side Cutting Machine is an advanced automated processing center designed for high-precision trimming and sizing of various door types, including interior, fire, warehouse, and hotel doors. This state-of-the-art woodworking equipment integrates seamlessly into production lines while delivering exceptional accuracy and efficiency in door panel processing.

Featuring a through-feed design for continuous operation, this cutting machine eliminates manual intervention, reducing labor costs and production time. Its sophisticated CNC system and robust construction ensure precise dimensional accuracy, making it an ideal solution for modern door manufacturing facilities seeking to optimize production workflows.

Key Features

High Flexibility: Processes doors ranging from 1500-3000mm in length, 350-1200mm in width, and 35-80mm in thickness
Exceptional Efficiency: Automated operation completes one door in just 30 seconds, dramatically increasing production throughput
Precision Engineering: Maintains ±0.2mm tolerance in mass production for uniform quality
Advanced Cutting System: Four cutting units with 350mm diameter mother-child saws prevent tearing and chipping
Automated Material Handling: 40m/min belt feeding system with dedicated waste collection conveyors
Intelligent Software: User-friendly PNC operating system with digital modular input and backup functionality

Technical Specifications

Parameter	Specification
Processing Length	1500-3000 mm
Processing Width	350-1200 mm
Processing Thickness	35-80 mm
Main Motor Power	35.6 KW (8 motors: 5.5KW×2, 3.7KW×2, 1.1KW×2, 7.5W×2)
Mother-Child Saw Diameter	350 mm
Machine Weight	3000 kg
Machine Dimensions (L×W×H)	4260 × 3220 × 2200 mm
Processing Speed	30 seconds/door
Feeding Speed	40 m/min

Operational Advantages

Labor Savings: Through-feed design and automated systems reduce manual intervention
Production Efficiency: Processes hundreds of doors in an 8-hour shift
Precision Quality: Advanced positioning system ensures accurate dimensional control
User-Friendly: Intuitive software interface reduces training time
Minimal Maintenance: Heavy-duty construction ensures durability and reduced downtime

Frequently Asked Questions

Q: What types of doors can this machine process?

A: Capable of handling interior doors, fire doors, warehouse doors, hotel doors, solid wood doors, composite doors, and eco-doors.

Q: How does the machine prevent edge chipping during cutting?

A: Utilizes a mother-child saw system with four cutting units featuring main and sub-saws to eliminate tearing and chipping.

Q: What is the production capacity of this machine?

A: Processes one door every 30 seconds, approximately 400+ doors in an 8-hour shift.

Q: Does the machine require specialized operators?

A: The intuitive PNC operating software significantly reduces technical expertise requirements.

Q: How does the waste management system work?

A: Features automatic waste collection with dedicated conveyors for both short and long edge waste.
