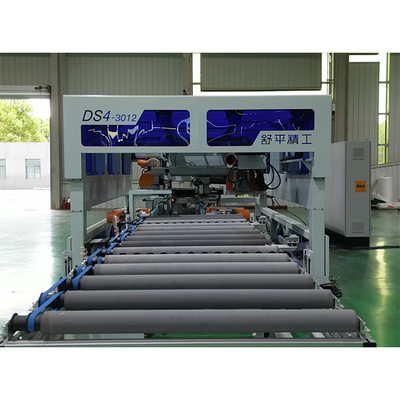

High-Speed CNC Four-Sided Door Cutting Machine for Industrial Production

Brand Name:	Shuping
Model Number:	DS4
MOQ:	1
Payment Terms:	T/T
Supply Ability:	10pcs/40 work days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Packaging Details:

Bubble wrap packaging

Supply Ability:

10pcs/40 work days

Highlight:

High-Speed CNC door cutting machine

Industrial four-sided door cutter

Wood door CNC cutting equipment

Product Description

High-Precision Four-Sided Squaring and Cutting Center

Our Four-Sided Squaring and Cutting Center is an advanced CNC processing system engineered for high-speed, precision trimming and squaring of diverse door types, including interior doors, fire-rated doors, warehouse doors, and hotel doors. Capable of processing one door every 30 seconds, this machine significantly boosts production line efficiency while ensuring exceptional accuracy.

Key Features

Ultra-Fast Processing: Achieves a cycle time of 30 seconds per door.
Full Automation: Through-feed design with automatic positioning and waste removal.
Advanced Saw System: Mother-child saws ensure clean, defect-free edges.
User-Friendly Software: Intuitive PNC control system with digital input and backup functionality.
Waste Recycling: Automatic collection of both short and long edge scraps.

Advantages

Reduces operational costs via automation and minimal manual intervention.
Delivers consistent high precision (±0.2mm) for large-scale production.
Supports flexible customization for various door sizes and types.
Enhances productivity with a high feed speed of 40m/min.

Technical Parameters

Parameter Category	Details
Processing Time	30 seconds/door
Workpiece Dimensions	Length: 1500-3000mm, Width: 350-1200mm, Thickness: 35-80mm
Saw Motor Power	35.6 kW (5.5kW x 2, 3.7kW x 2, 1.1kW x 2, 7.5kW x 2)
Saw Blade Diameter	350mm (for both mother and child saws)
Machine Weight	3000 kg
Machine Dimensions	4260 x 3220 x 2200 mm
Feed Speed	40m/min
Waste Management	Automatic scrap collection under front and rear roller tables

Frequently Asked Questions

What materials can this machine process?

It is suitable for wooden doors, glass doors, and fire-resistant doors.
How is the machine controlled?

The proprietary PNC software allows easy digital input and offers backup and restoration features.
What is the accuracy of this system?

It maintains a tolerance of ±0.2mm in batch production.
Does the machine require special maintenance?

Routine maintenance is straightforward, thanks to its robust design and self-diagnostic software.
Can it process custom-sized doors?

Yes, the machine automatically adjusts to different door widths via screw drive positioning.
