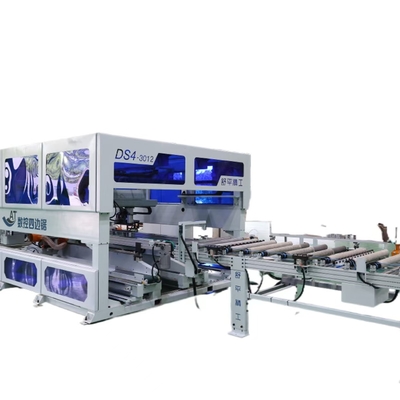

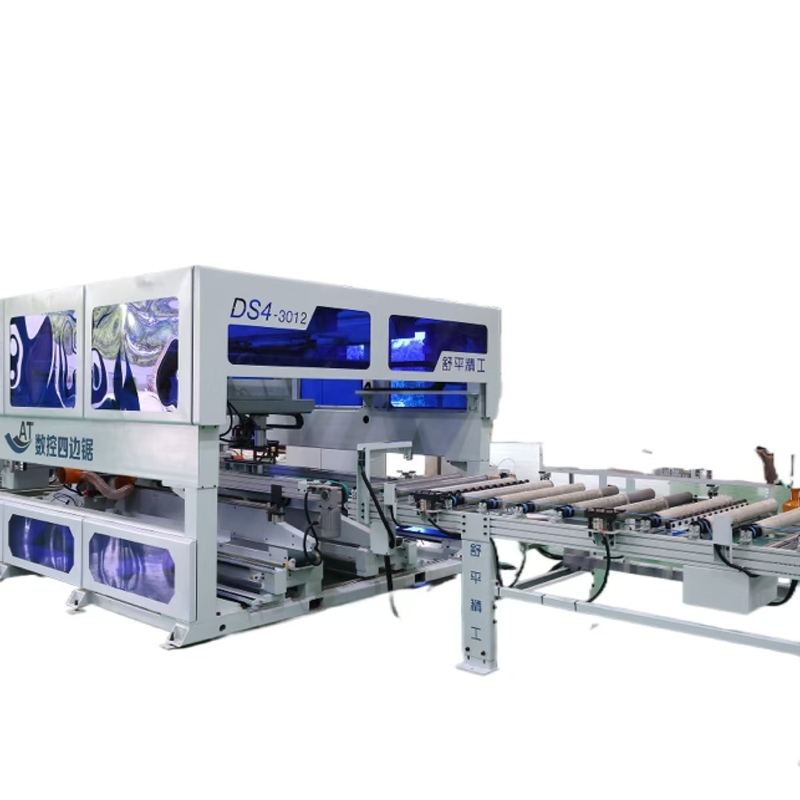

High-Speed CNC Four-Side Cutting Center for Doors

The  Four-Side Precision Cutting Center revolutionizes door manufacturing with unmatched speed and accuracy. Designed for mass production of interior, fire-rated, warehouse, and hotel doors (including flat panel and glass doors), this automated system delivers perfect squaring ("guifang") in just 30 seconds per door. Engineered for industrial environments, it eliminates manual handling while guaranteeing batch consistency within ±0.2mm tolerance.

Key Features & Advantages:

1. Blazing Efficiency: Processes 1 door every 30 seconds via through-feed design with automatic positioning.

2. Full Automation: Motorized width adjustment (ball screw driven), programmed sizing, and integrated waste conveyors eliminate labor.

3. Zero-Defect Cutting: Quad-saw system with 8 specialized motors (35.6kW total) features unique twin-saw technology (Ø350mm parent/child blades) to eliminate chipping, burrs, and wave patterns.

4. Smart Material Handling: Belt feed system (40m/min speed) with dedicated scrap collection under front/rear rollers.

5. User-Friendly PNC Software: Intuitive digital interface with modular inputs simplifies operation and reduces training needs. Includes backup/restore functionality.

Technical Specifications:

FAQ:
Q: What door types can it process?
A: Flat panel doors, glass doors, interior doors, fire doors, warehouse doors, and hotel doors.

Q: How does it prevent cutting defects?
A: Twin-saw technology (parent/child blades) on all four cutting units ensures clean, splinter-free edges.

Q: Is manual scrap handling required?
A: No – front and rear roller conveyors automatically collect short and long edge waste.

Q: Can it handle variable door widths?
A: Yes – automatic width adjustment via precision ball screws accommodates 350-1200mm widths.

Q: What software does it use?
A: Proprietary PNC control software with intuitive interface and backup system.
