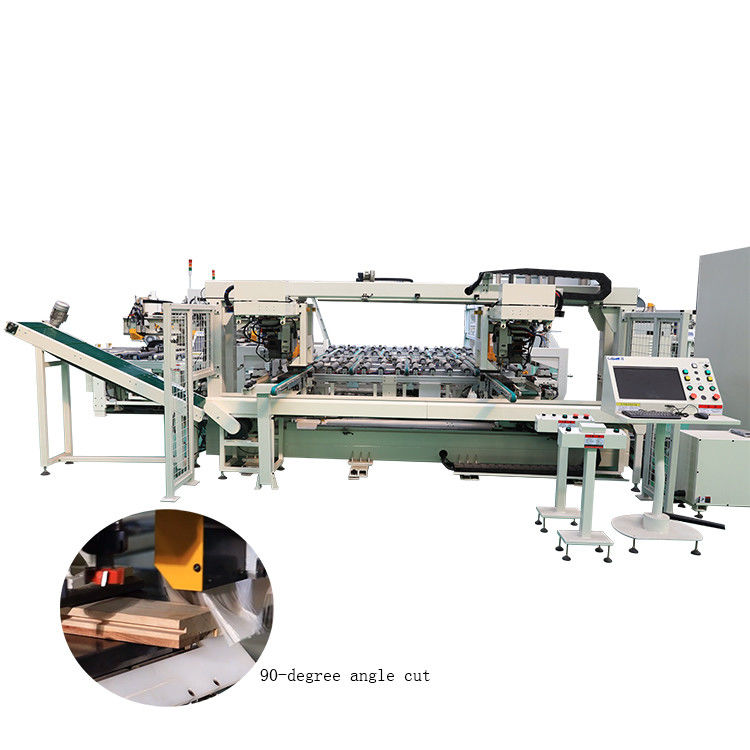

380V Smart CNC Door Making Machine Manufacturing Line OEM

380V Smart CNC Door Making Machine Manufacturing Line OEM

Brand Name:	shuping
Model Number:	Door frame line
MOQ:	1
Price:	$10000-$50000
Payment Terms:	T/T
Supply Ability:	10pcs/40 work days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Control System:

PLC

Min Door Size:

0.5m X 0.5m

Production Capacity:

100 Doors/hour

Total Power:

50kW

Weight:

10 Tons

Power Supply:

380V/50Hz

Operating Mode:

Automatic

Dimension:

10m X 5m X 3m

Max Door Size:

2m X 1m

Warranty:

1 Year

Material:

Wood

Packaging Details:

Bubble wrap packaging

Supply Ability:

10pcs/40 work days

Highlight:

380V cnc door making machine

OEM cnc door making machine

380V door manufacturing machine

Product Description

Processing Flow: Sawing → End Processing → Hardware Processing → Optional Door Casing Silent Strip

DFH Door Frame Latch and Hinge Machining Center

Product Overview

The DFH Door Frame Latch and Hinge Machining Center is a high-efficiency composite processing equipment developed by Shanghai Shuping Seiko Machinery Co., Ltd. to address the flexible production needs of the wooden door industry. This machine integrates two core functions—door frame latch hole processing and hinge installation groove machining—into a single unit, realizing the concept of "one machine, dual-function processing"., including low efficiency, large floor space occupation and high labor costs caused by scattered production processes.

Adopting a three-spindle synchronous processing design, the equipment can mill three hinge positions simultaneously, completing single-layer hinge groove processing in just 20 seconds per door frame, achieving industry-leading processing efficiency. Meanwhile, it innovatively uses the upper surface of the workpiece as the processing reference surface, which effectively avoids processing errors caused by material thickness tolerances and significantly improves the product yield rate.

The DFH Machining Center is suitable for latch hole and hinge groove processing of door frames for various types of doors, including solid wood doors, composite doors and paint-free doors. It can be used as a standalone machine or integrated into automated production lines, meeting diverse production requirements from small-batch customization to large-scale manufacturing.

Technical Specifications

Parameter	Specification
Working Length	1800-2600 mm
Working Width	90-400 mm
Working Thickness	20-45 mm
Power of Milling Spindles for Latch and Hinge	3.0 kW × 3
Power of Up-milling Spindles for Latch and Hinge	0.75 kW × 3
Overall Dimensions	4000 × 2000 × 2200 mm
Processing Cycle Time (Single-layer Hinge)	≤ 20 seconds per piece
Control System	PLC control, supports G-code
Voltage/Frequency	380V / 50Hz

Note: Equipment is continuously being improved; parameter configurations are for reference only.

Target Customer Groups

Wooden door manufacturers: Processing of door frames for various types of solid wood doors, composite doors and paint-free doors
Whole-house customization enterprises: Small-batch, multi-variety customized processing of door frames
Door-wall-cabinet integrated enterprises: Supporting processing of door frames with wall panels and cabinetry

Applicable Scenarios

Scenario	Recommended Equipment Configuration
Standalone small-batch production	Manual loading and unloading, quick mold change, adaptable to door frames of multiple specifications
Connected mass production	Connected with four-side saws and conveyor lines to form an automated production line
High-end customized door frame processing	Upper surface reference plane technology ensures high-precision processing and meets high-end customization requirements
