Custom Wood Door Frame Machine Engraving Cutting Center Manufacturing Machinery

Name: Custom Wood Door Frame Machine Engraving Cutting Center Manufacturing Machinery
Brand: Shanghai Shuping Precision Industry Machinery Co.,Ltd.
SKU: DZB
Price: 30,000.00 USD
Availability: InStock

Brand Name:	shuping
Model Number:	DZB
MOQ:	1
Price:	$10000-$50000
Payment Terms:	T/T
Supply Ability:	10pcs/40 work days

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Dimension:

5000*800*1200mm

Power:

380V/50Hz

Material Width:

80-300mm

Transmission:

Chain Transmission

Forming Stations:

12-16

Hydraulic System:

Hydraulic Pump

Motor Power:

4KW

Working Speed:

10-15m/min

Roller Material:

45# Steel

Material Thickness:

0.3-0.8mm

Cutting Blade Material:

Cr12Mov

Control System:

PLC Control System

Packaging Details:

Bubble wrap packaging

Supply Ability:

10pcs/40 work days

Highlight:

Custom Door Frame Machine

Engraving Door Frame Machine

Engraving Cutting door manufacturing machinery

Product Description

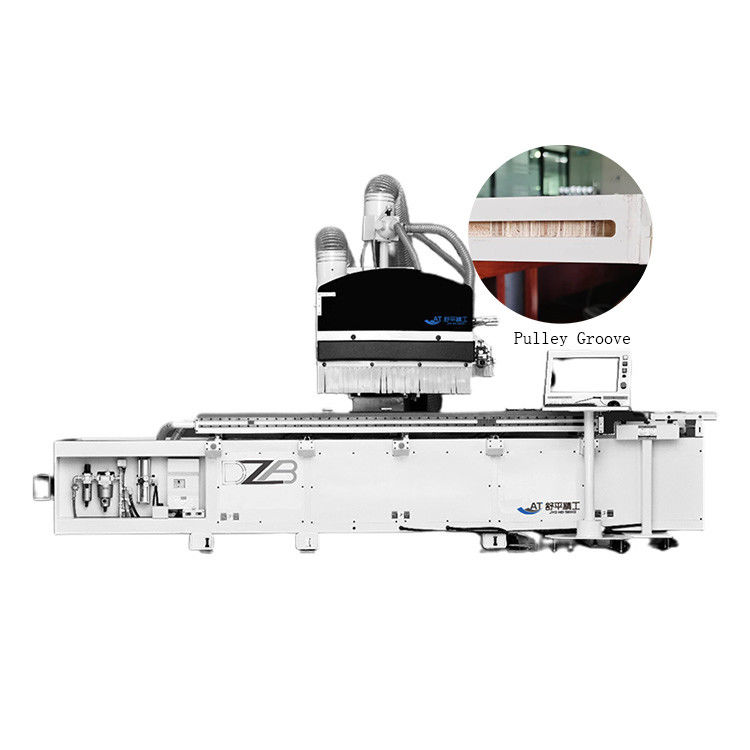

Custom Wood Door Engraving & Cutting Center

Device Name	model	Technical parameter configuration
Multifunctional wooden door processing center	DZB-3012P-AS2THR212HB22	Main milling axis motor (A):11kw (automatic oil supply atomization cooling lubrication)
		Rotation speed: 3000 - 18000 rpmMitsubishi frequency conversion control
		Specially made by the company: Constant temperature control and low vibration
		2. Automatic tool changer: 6 tool positionsMitsubishi Servo Control
		Maximum tool diameter 100mmHandle type: BT30
		3. Material specification Cylinder: Cylinder × 14 (Taiwan AirTac)
		4. Mother-child saw (S2):
		Rotation angle (°) 0-90
		Saw blade motor power (kw) 3.2 Speed (rpm)5000 - 6000
		Mother saw blade diameter (mm) 255Diameter of saw blade (mm): 60
		Independent design
		5. Lock shaft milling HR2 (deep digging)
		Main horizontal milling (kw) 5.6Motor speed (rpm) 6000 - 18000
		Reverse horizontal milling (kw) 0.75×1Motor speed (rpm) 6000 - 18000
		6. Pin milling machine HR1
		Forward horizontal milling (kw) 0.75×1Motor speed (rpm) 6000 - 18000
		7.Hinge milling HR2 (shallow digging)
		Forward horizontal milling (kw) 0.75×1Motor speed (rpm) 6000 - 18000
		Reverse horizontal milling (kw) 0.75×1Motor speed (rpm) 6000 - 18000
		8. Drill shaft HB2 for lifting holes
		Horizontal drilling (forward and reverse) (kw) 0.75×1Motor speed (rpm) 3900
		9. Drill shaft HB2 for wood pin holes
		Horizontal drilling (forward and reverse) (kw) 0.75×1Motor speed (rpm) 3900
		10. Automatic thickness measuring device (T)
		11. Workstations: 4
		12. High pressure fan: 5.5kw×2
		13. Routing and milling length: within 3000mm Width: 120-1000mm Thickness: 18-60mm
		Saw shaft processing length: within 2500mm Width: 120-1000mm Thickness: 18-60mm
		Paint hole processing length: within 3000mm Width: 120-1000mm Thickness: 18-60mm
		Vertical frame wood pin hole processing length: within 3000mm width: 120-1000mm thickness: 18-60mm
		14. Speed: Maximum moving speed: X60M/min Y60M/minZ10M/min
		Maximum cutting speed: 20M/min
		15. Exhaust port: 2 200mmAir volume: 25-30m/s 30m3/min
		16. Working air pressure: 0.5MPa-0.6MPa
		17. Booster system: SMC
		18. Drive mode: Mitsubishi servo drive
		19. Control system: Mitsubishi control system
		20. Ball screw: THK
		21. Main oil supply system: TACO
		22. Main gas supply system: CKD
		23. Mechanical footprint: 4260x 3410x 2350mm
		24. Machine weight: 3000kg
		25. Computer voltage-stabilizing battery: detects the voltage and current of the entire machine to ensure that the computer program or computer machinery will not be damaged in the event of a sudden power outage or voltage instability.
		26. Software: PNC operating software is independently developed, with a simple and easy-to-understand interface and digital modular input, which reduces the technical requirements of operators. The software has a backup and restore device.
