Timber Cabinet Door Making Equipment Four Sided Saw 2800r/Min

Name: Timber Cabinet Door Making Equipment Four Sided Saw 2800r/Min
Brand: Shanghai Shuping Precision Industry Machinery Co.,Ltd.
SKU: DZWJ
Price: 30,000.00 USD
Availability: InStock

Brand Name:	shuping
Model Number:	DZWJ
MOQ:	1
Price:	$10000-$50000
Payment Terms:	T/T
Supply Ability:	10pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Cutting Length:

300-3000mm

Weight:

350kg

Saw Blade Diameter:

400mm

Dimension:

3500x800x1100mm

Cutting Speed:

10-30m/min

Cutting Angle:

45°-90°

Material:

Steel/Aluminum/Plastic

Frequency:

50Hz

Power Source:

Electric

Saw Blade Speed:

2800r/min

Power:

2.2kW

Voltage:

220V

Supply Ability:

10pcs/month

Highlight:

timber door making equipment

2800r/min door making equipment

timber cabinet door making equipment

Product Description

Product Name: DZWJ Four-Side Saw Machining Center for Wooden Doors

Model No.: DZWJ

Keywords: One door processed within 40 seconds / Wooden door squaring / Four-side saw / CNC machining center

Product Overview

The DZWJ four-side saw machining center for wooden doors is an efficient automated equipment developed exclusively by Shuping Precision for the squaring process of wooden doors. Adopting a three-group saw blade configuration integrating main saws and scoring saws, the machine enables precise cutting without pre-milling and effectively prevents edge chipping. It only takes 40 seconds to process a single door panel, meeting the mass customized production demands for various wooden doors.

The machine supports standalone operation or integration into automatic production lines, equipped with intelligent functions including program calling via QR code scanning and scheduled processing, greatly improving production efficiency and operational convenience. Featuring a compact overall structure and low energy consumption with moderate requirements for dust removal systems, it serves as an ideal solution for wooden door manufacturers to improve product quality and production efficiency.

Technical Parameters

Item	Specification
Processing Length	1800–3000 mm
Processing Width	300–1200 mm
Processing Thickness	18–60 mm
Main Saw Motor Power	4.2 KW × 3
Scoring Saw Motor Power	1.1 KW × 3
Overall Machine Dimension	4800 × 2800 × 2400 mm
Processing Cycle	40 seconds per door

Product Features

Three-group saw configuration: coordinated operation of main saws and scoring saws eliminates pre-milling before edge banding, delivering smooth cutting surfaces free of edge chipping.
Intelligent control: automatically calls processing programs via QR code scanning and supports scheduled processing for easy operation.
Flexible production: available for standalone use or connection to automatic production lines to adapt to diverse production modes.
Energy-saving & high efficiency: low-power design completes processing in just 40 seconds per door, with energy consumption below the industry average.
Low maintenance cost: moderate requirement for central dust collection system, long service life of saw blades and reduced maintenance expenses.
High compatibility: compatible with a wide range of door panel sizes, with flexible trimming allowance to save raw material costs.

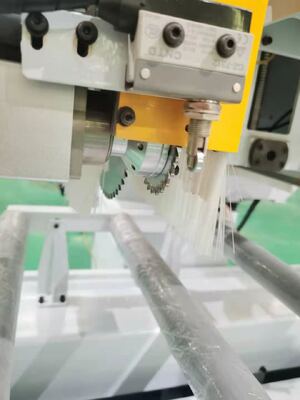

Timber Cabinet Door Making Equipment Four Sided Saw 2800r/Min 0

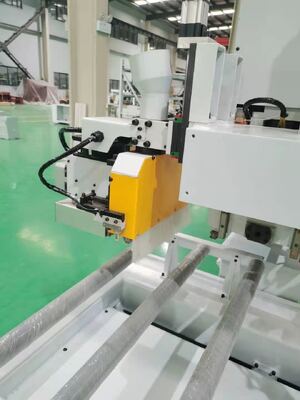

Timber Cabinet Door Making Equipment Four Sided Saw 2800r/Min 1

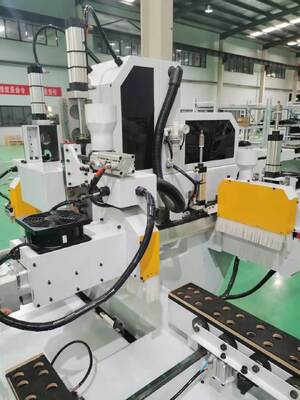

Timber Cabinet Door Making Equipment Four Sided Saw 2800r/Min 2
